Vannes UHP
Vannes pour haute pression & pour des applications ultra high purity.
Disponible en 316L SS ou en matière spécial UHP.
| Modèle | Photo | Fabriquant | DN siège | Pressure max | Type de vanne | Surface finish | Datasheet |
|---|---|---|---|---|---|---|---|

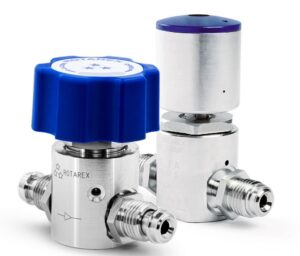

| RX04 |  |  | 4mm | 10 / 20 / 240 bar | Multiturn handwheel / Quarter turn handwheel / Pneumatically actuated | 0.4 µm / 0.25 µm |  |

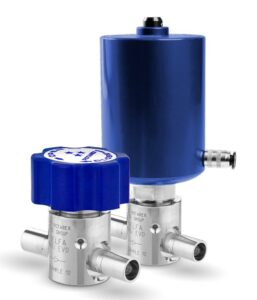

| RX08 |  | | 8mm | 20 / 240 bar | Multiturn handwheel / Quarter turn handwheel / Pneumatically actuated | 0.4 µm / 0.25 µm | |

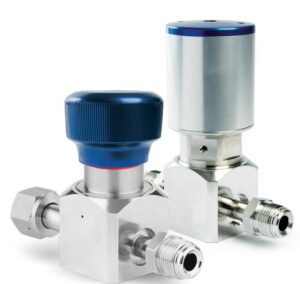

| M12 |  | | 12mm | 15 bar | Multiturn handwheel / Pneumatically actuated | 0.4 µm / 0.25 µm / 0.13 µm | |

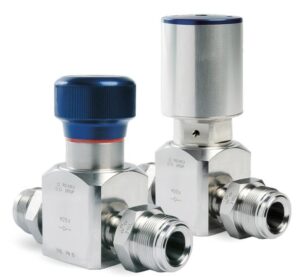

| M20 |  | | 20mm | 15 bar | Multiturn handwheel / Pneumatically actuated | 0.4 µm / 0.25 µm / 0.13 µm | |
